Certified Fire Door Drop Testing in Pierce and South King County
Stay fully compliant with NFPA 80 fire safety regulations and keep your property protected. Lakeside Doors provides certified annual fire door drop testing, thorough visual inspections, double-drop verification, and official compliance documentation for commercial facilities across Pierce and South King Counties.
What Is Certified Fire Door Drop Testing and Why Is It Mandatory for Commercial Facilities?
Make Sure Your Garage Doors Work During an Emergency
Fire door drop testing is a regulated safety procedure designed to verify that commercial rolling steel fire doors, insulated shutter systems, and fire-rated counter doors drop completely and seal off building compartments during an emergency.
In a commercial facility, fire doors act as passive fire protection barriers. When ambient temperatures rise or building fire alarm systems trigger, automatic release mechanisms, such as fusible links, electromagnetic releases, or motorized drop delays, disengage the tension hardware, allowing the heavy steel curtain to descend under gravity or controlled spring power.
If a rolling fire door fails to close completely during a fire event, smoke, toxic gases, and flames rapidly spread through compartmentalized facility zones. This jeopardizes employee lives, accelerates property destruction, and exposes property managers to severe liability. National safety standards established by the National Fire Protection Association (NFPA 80) mandate that all fire-rated door assemblies undergo a formal physical drop test and thorough visual inspection at least once every 12 months.
What Does NFPA 80 Compliance Require for Annual Commercial Fire Door Inspections?
Inspection, Double Drop Testing, and Written Compliance Documentation
NFPA 80 (Standard for Fire Doors and Other Opening Protectives) outlines strict criteria that commercial facility owners must maintain. Local fire marshals, municipal code inspectors, and commercial property insurance auditors check these records during facility reviews. Under NFPA 80 regulations, annual compliance mandates three key steps:
Visual & Structural Inspection: A thorough examination of the entire fire door assembly, including guides, tracks, slats, counter-balance barrels, tension assemblies, expansion clearance, wall fasteners, and release hardware.
Double Drop Testing Procedure: The system must undergo two consecutive physical drop tests. The first test verifies that the door drops at a safe, controlled speed between 6 inches and 24 inches per second and closes tightly against the floor sill. The second test proves that the release mechanism and spring tension assemblies reset correctly and operate reliably in back-to-back testing.
Written Compliance Documentation: Facilities must retain detailed written inspection records, signed drop-test certificates, and maintenance logs on site for review by the Authority Having Jurisdiction (AHJ).

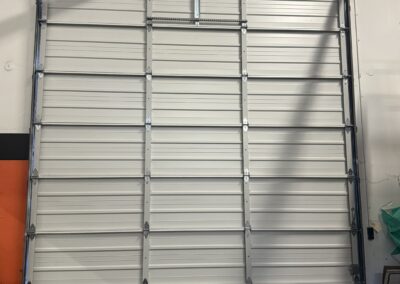

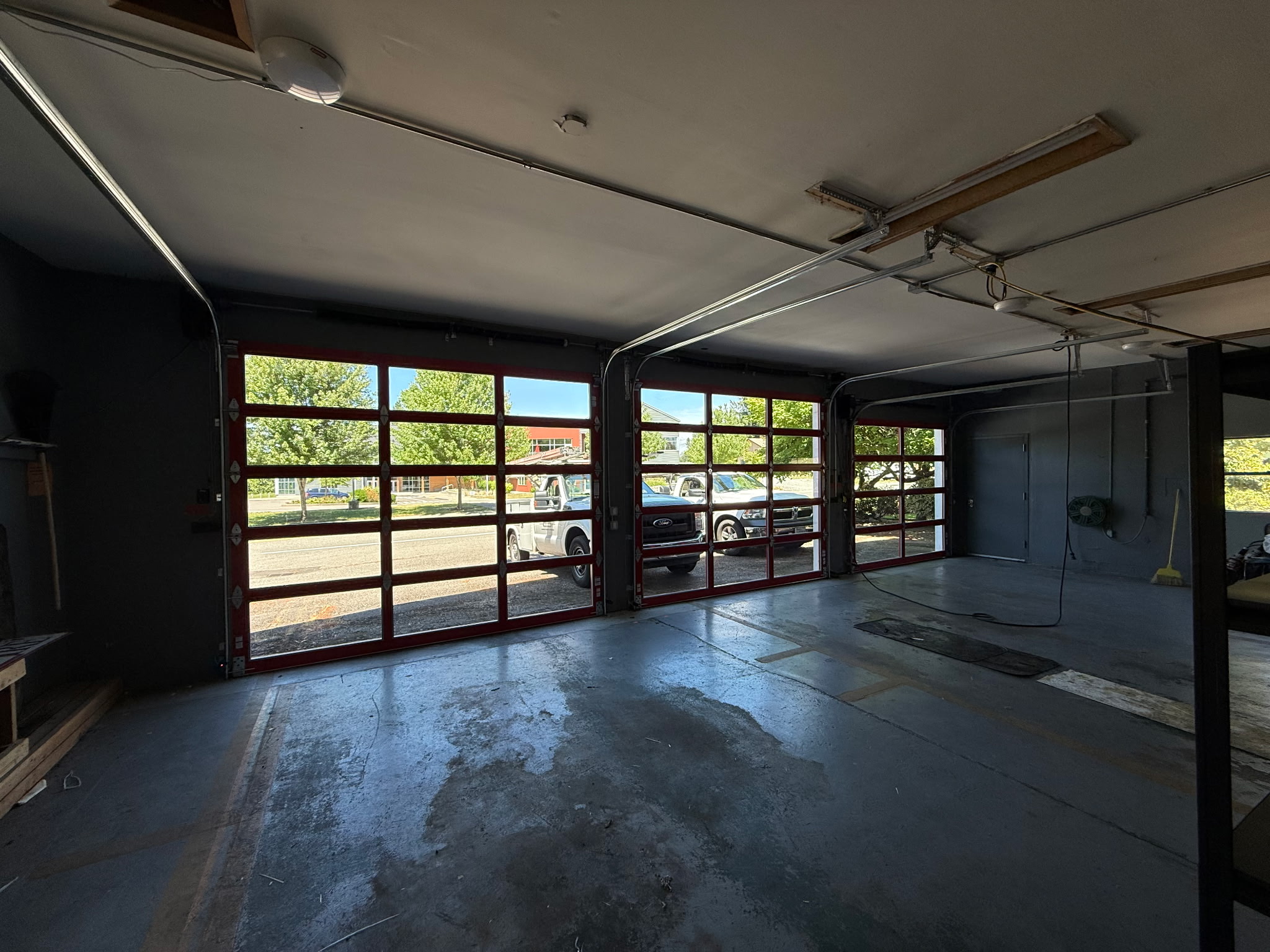

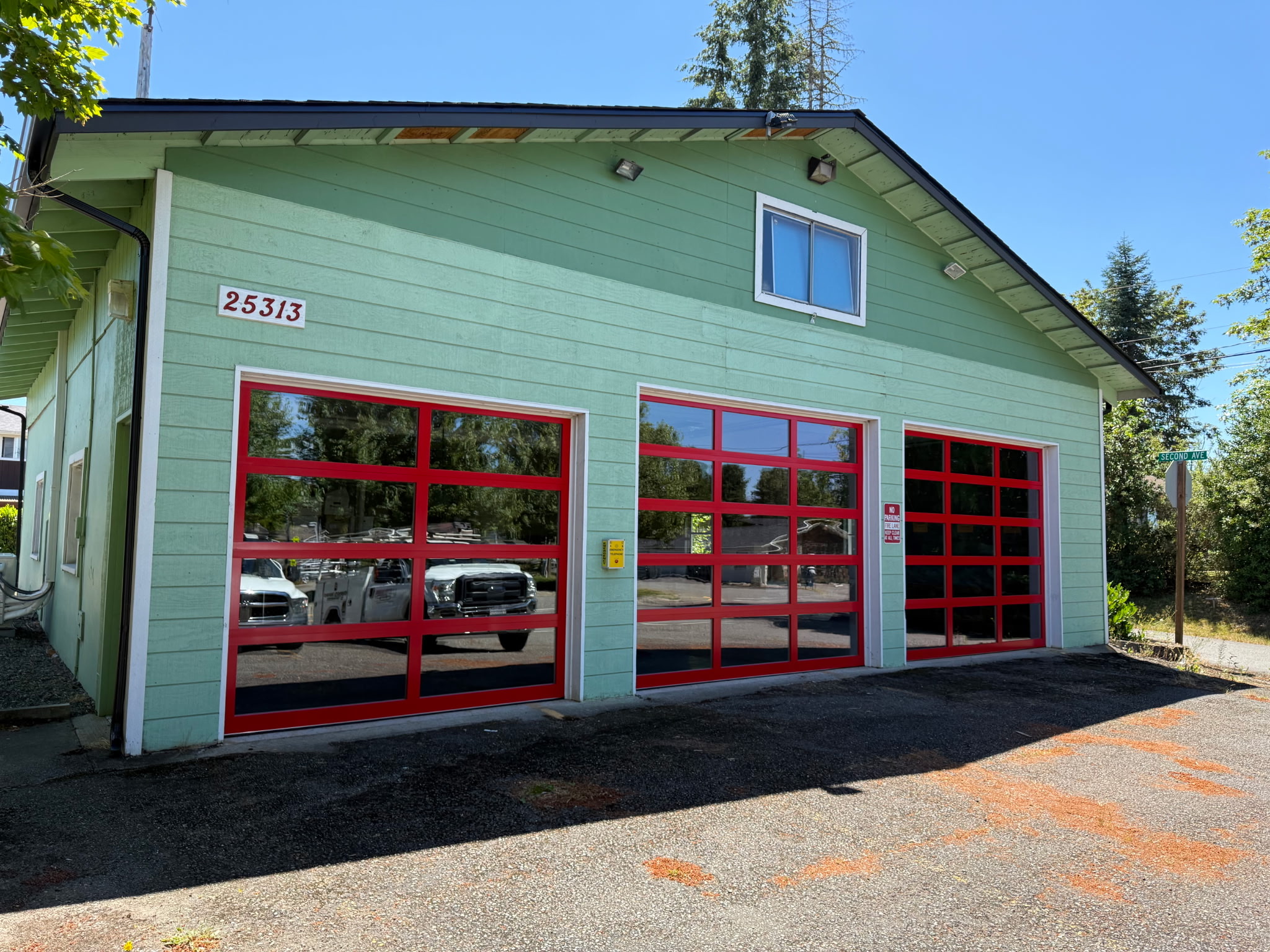

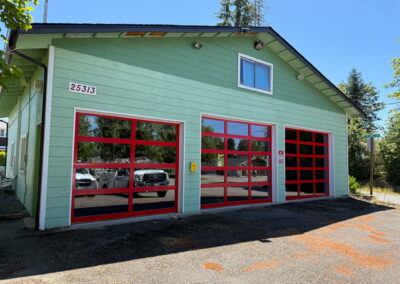

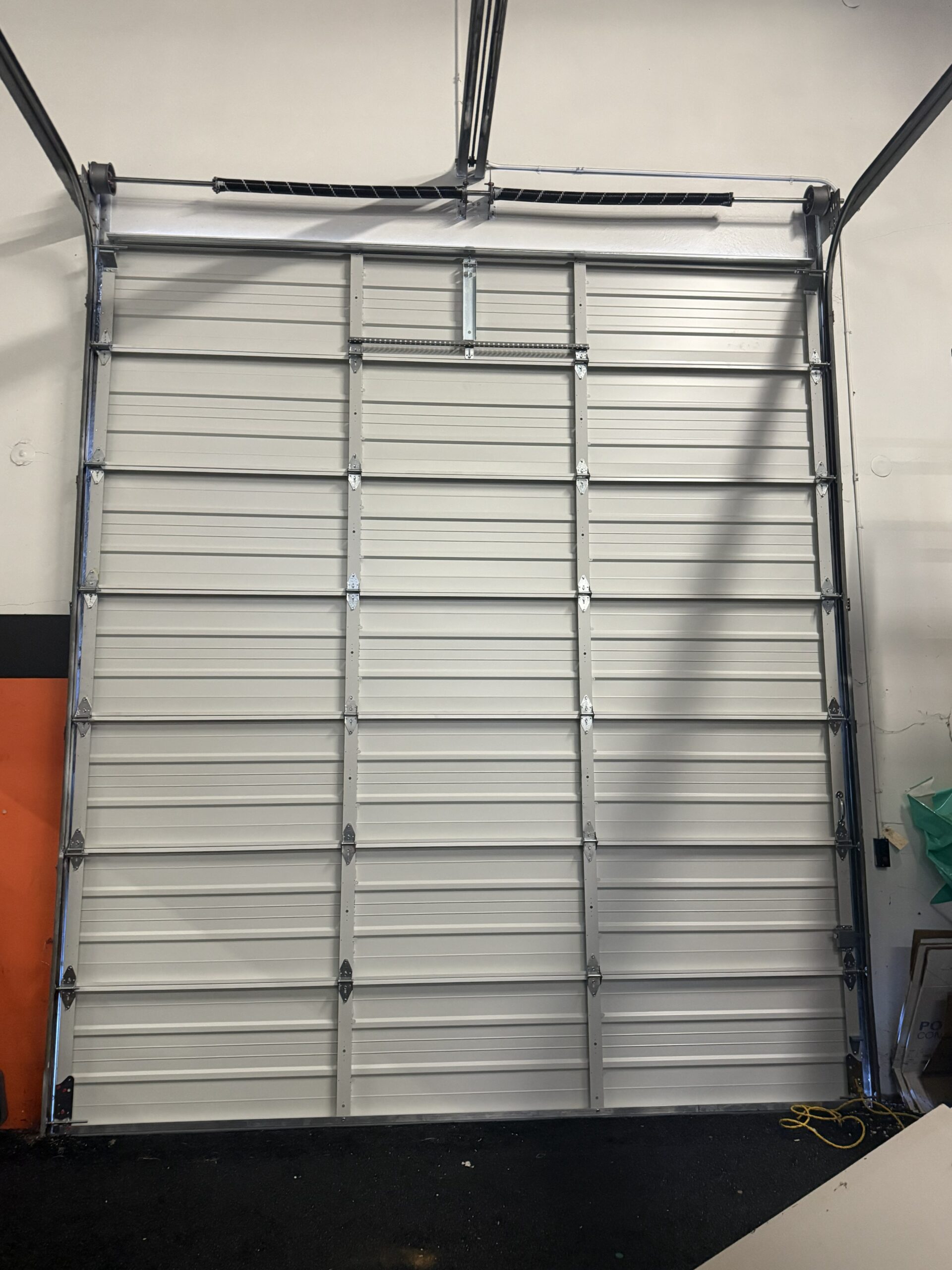

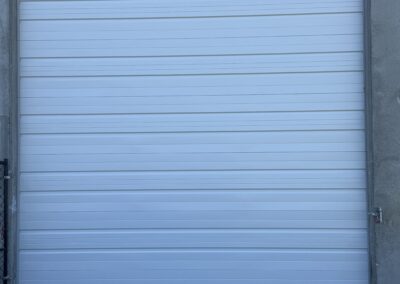

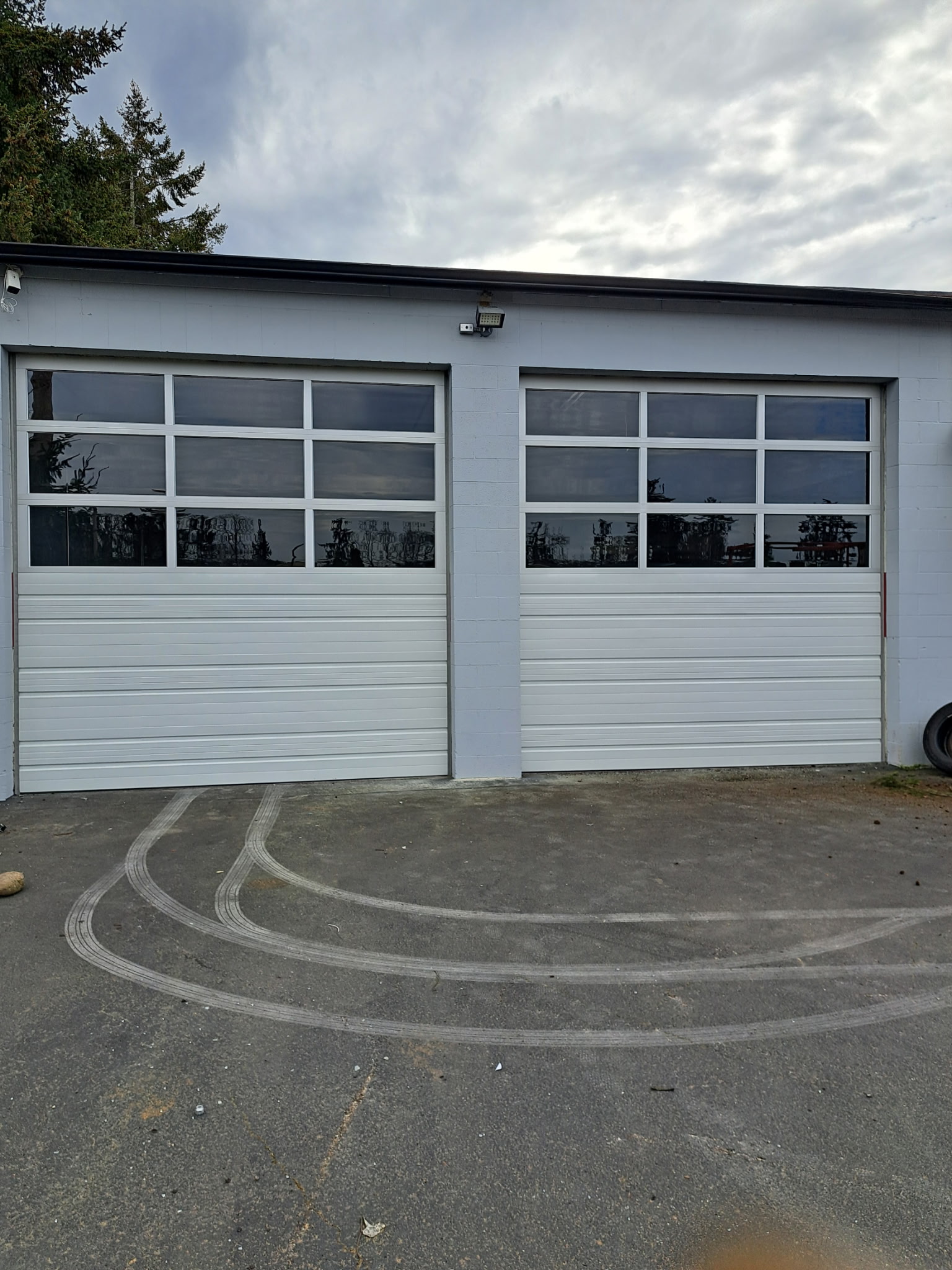

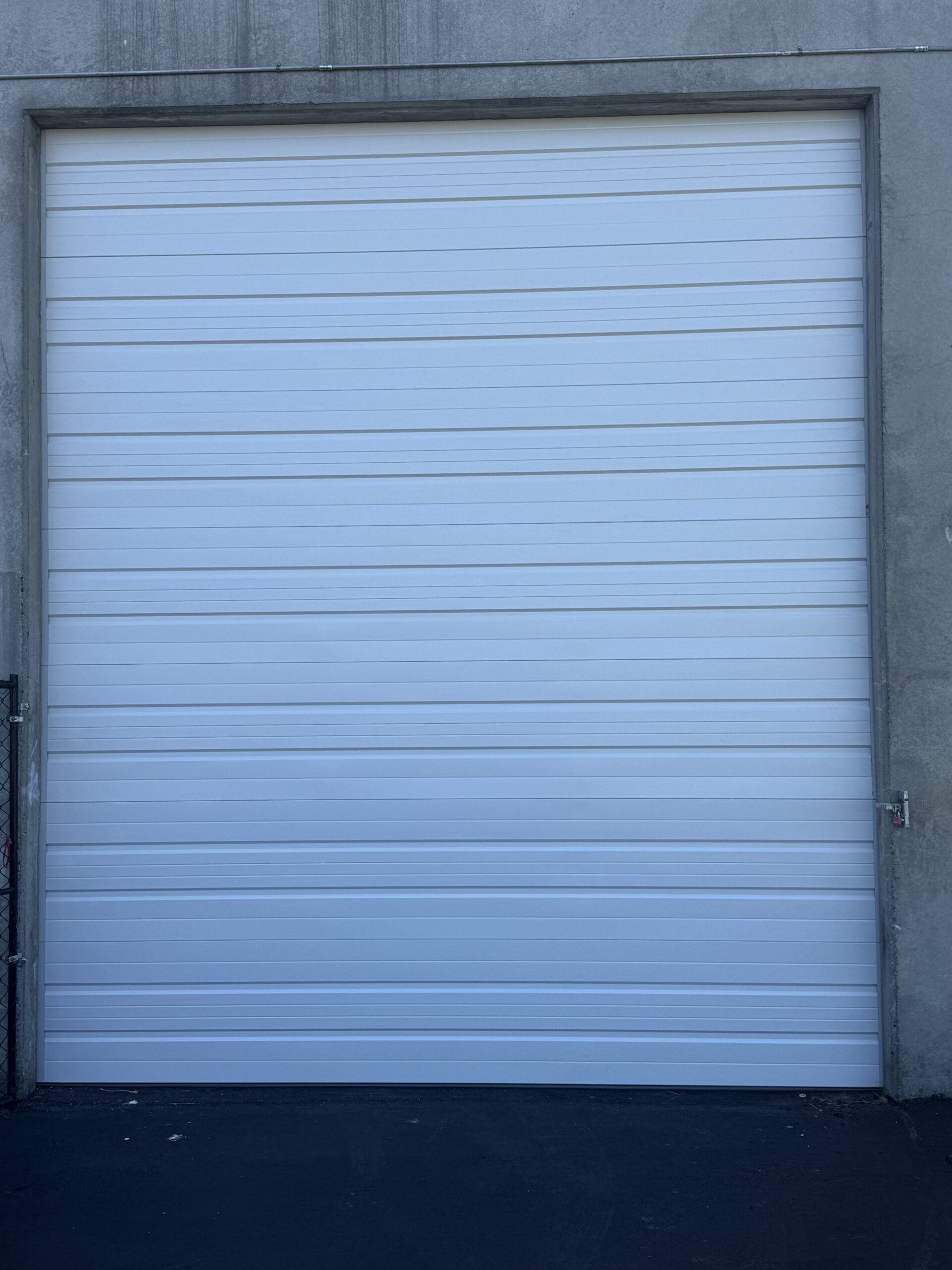

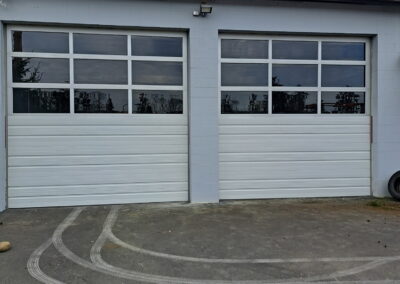

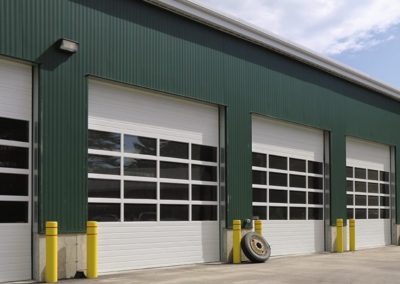

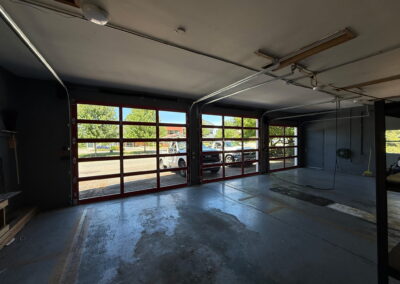

Commercial Garage Door Projects
What Our Commercial Garage Door Customers Are Saying
Lakeside Doors is the best in the South Sound as a self-storage facility operator. Lakeside Doors is our preferred vendor. Their technicians are honest, professional, and friendly, and the office staff is beyond phenomenal. If you are in need of door service, don’t waste your time looking at others; choose Lakeside Doors.
What Happens During a Professional Fire Door Inspection and Drop Test by Lakeside Doors?
When a certified technician from Lakeside Doors evaluates your commercial facility, we execute a rigorous, standardized multi-point protocol to ensure every mechanical component functions safely and correctly:
-
Visual Component Evaluation: We inspect rolling curtains for physical impact damage, warped slats, loose guide bolts, cracked welds, or rusted tracks that could bind the curtain during a descent.
-
Fusible Link & Alarm Integration Check: We verify that thermal fusible links are free of paint buildup, corrosion, or grease. If your doors link directly to a central fire alarm panel or smoke detector system, we test electronic solenoid triggers and time-delay release devices.
-
Controlled Gravity Drop Verification: We trigger the primary release to observe the drop rate. The door must close fully, sealing the opening without slamming violently or stalling midway down the tracks.
-
Bottom Bar & Floor Sill Seal Check: We verify that the bottom bar makes complete, level contact with the floor along the full width of the opening to stop smoke migration.
-
System Reset & Spring Balance Tuning: Resetting a dropped fire door requires specialized knowledge to tension spring barrels safely. Our technician resets the drop mechanism, rewinds spring tension to operational standards, and conducts the secondary drop test.
Why Choose Lakeside Doors for Certified Fire Door Compliance in Pierce and South King Counties?
Fire door drop testing isn’t a task for general handymen or uncertified mechanics; it requires trained personnel who understand spring mechanics, drop governors, and life-safety codes.
-
On-Staff Certified Technicians: Our team includes factory-trained technicians certified in commercial fire door inspection and testing standards.
-
Comprehensive End-to-End Service: We handle everything, from initial visual checks and physical drop testing to immediate hardware repairs and formal certification paperwork.
-
Local Accountability: Based in Puyallup, WA, we respond quickly to scheduled maintenance calls and urgent repairs for commercial warehouses, manufacturing plants, distribution hubs, auto shops, and retail centers.
-
Decades of Local Trust: Family-owned and operated for over 40 years, we provide transparent quotes, clear reporting, and honest service without hidden fees.
Frequently Asked Questions About Fire Door Drop Testing
How often must commercial fire doors undergo drop testing?
Commercial fire doors must be drop-tested annually in accordance with NFPA 80 guidelines. Additional testing should be conducted immediately following any major building alteration, track repair, or impact event.
What types of commercial facilities require fire door drop testing?
Any commercial facility equipped with fire-rated rolling steel doors, fire shutters, or counter fire doors requires annual drop testing. This includes manufacturing plants, distribution warehouses, auto dealerships, schools, hospitals, parking garages, and retail centers.
What paperwork do I receive after successful fire door drop testing?
Upon successful completion of the drop test, we provide an official Fire Door Drop Test Certificate detailing door serial numbers, inspection dates, testing results, and technician sign-offs for your property records and fire marshal audits.
Can Lakeside Doors repair my fire door if it fails the drop test?
Yes. Our technicians can perform immediate component repairs, including replacing painted fusible links, realigning bent guide tracks, adjusting drop governors, replacing worn cables, and recalibrating spring tension.
What is the difference between a standard commercial door and a fire-rated door?
A standard commercial overhead door is designed primarily for building security and environmental control. A fire-rated door is constructed with fire-tested steel slats, specialized fire-rated guides, thermal release mechanisms, and flame-retardant seals engineered to contain fires for up to 4 hours.
Is Your Facility Fully Compliant with NFPA 80 Fire Safety Codes?
Avoid costly fire marshal citations, insurance claim denials, and life-safety hazards with annual certified fire door drop testing.
We have an on-staff Certified Fire Door Technician qualified to inspect, double-drop test, reset, and formally certify your rolling steel fire doors across Pierce and South King Counties.
Keep your property compliant and your employees protected.
